Cold Storage System Manufacturer —
Custom Built, Installed with Ease

The Need for Smarter Cold Storage

Get Instant Quote
500+ InstallationsSouth India Wide
Free Site VisitWithin 48 Hours
1-Year WarrantyAll Components
7–10 Day InstallTamil Nadu Wide
Core Infrastructure Solutions

Standalone Blast Freezers Manufacturer

Commercial Cold Storage Systems

A reliable cold storage system is no longer optional for modern food and retail businesses — it is critical to maintaining product quality, consistency, and operational efficiency. Whether you are handling ice cream, dairy, processed foods, or other temperature-sensitive materials, your storage solution directly impacts shelf life, energy costs, and daily operations. Traditional cold rooms often require high investment, complex installation, and significant power consumption, making them less adaptable for evolving business needs.

Modern cold storage systems are engineered as a smarter alternative to conventional setups. Designed for efficiency and flexibility, these solutions deliver industrial-grade performance in a compact, plug-and-play format that eliminates lengthy installation and heavy infrastructure requirements. Each unit ensures stable and consistent temperature control, even in demanding environments, while significantly reducing energy consumption and operating costs.
Technical Definition

Understanding the Cold Room Ecosystem

A cold room is a thermally insulated, mechanically refrigerated enclosed space designed to maintain a specific temperature range for the storage or processing of temperature-sensitive goods. Cold rooms can be as small as 50 sq. ft. for a hotel kitchen or as large as 50,000 sq. ft. for a multi-commodity cold storage warehouse.

They are constructed using PUF (Polyurethane Foam) insulated panels for walls, ceiling, and floor, and powered by a mechanical refrigeration system comprising a compressor, condenser, evaporator, and expansion device. Temperature ranges for standard cold rooms are typically 0°C to +10°C, though custom configurations can achieve anything from +18°C (ripening chambers) to −40°C (blast freezers).

The CSIPL Commitment

Accountability Vetted Through Performance

12-Point Comprehensive Quality Validation
In-House Design & Assembly Loops
Guaranteed 24-Hour AMC Support SLA
Zero Outsourced Production Lines
Streamlined Procurement

Ready to Get Your Cold Room? Here’s How to Start

Getting a cold room built and installed in Tamil Nadu is simpler than you think. Fill the form below or call us directly — our engineer will visit your site within 48 hours, take measurements, calculate your cold load, and deliver a detailed, itemised quotation. No obligation. No advance payment required to get a quote.

01
Connect Or Dial

Fill out our form or call +91 9392180074

02
Free Site Assessment

An application engineer visits your target operational site within 48 hours.

03
Detailed Quoting

Receive a comprehensive configuration quote panel layout within 24 hours.

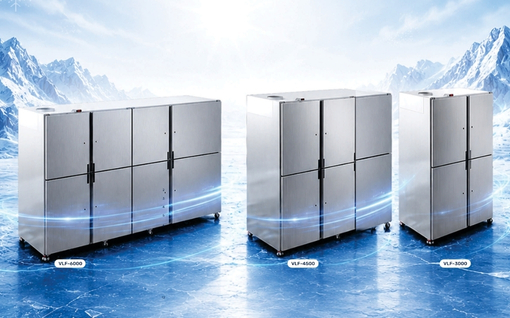

Technical Specifications Vertical

Model VLF-6000 VLF-4500 VLF-3000
Extemal Dimensions (WxDxH)mm 3250(W)x118(D)x2330(H) 2445(W)x1118(D)x2330(H) 1640(W)x1118(D)x2330(H)
Internal Cabin Volume 6000L 4500L 3000L
Number Of doors 8 No's 6 No's 4 No's
MOC - Body & Door PPGI PPGI PPGI
Number of shelves 8 6 4
Power Supply Single Phase 190-254V, AC. 50Hz Single Phase 190-254V, AC. 50Hz Single Phase 190-254V, AC. 50Hz
Number of Compressors 2 2 2
Connected Load 1000 W 750 W 500 W
Machine Mobility Heavy Duty industrial leveling castors with locking - 8 NO's Heavy Duty industrial leveling castors with locking - 6 NO's Heavy Duty industrial leveling castors with locking — 4 NO's
Maximum Operating Ambient Temp 43 Deg C 43 Deg C 43 Deg C
Cabin Temp Range -25 Deg cto +5 Deg C -25 Deg cto +5 Deg C -25 Deg C to +5 Deg C
Temp Display Bright Red colour LED display Bright Red colour LED display Bright Red colour LED display

2 UNITS REPLACE A 10′ × 15′ COLD ROOM
  • 💰 Half the cost of a cold room
  • ⚡ Consumes 1/3rd the electricity
  • 🔧 Powered by 2 compressors
  • 🚪 Patent pending cold stop door technology
  • 📐 Ergonomic door design
  • 🛡️ Advanced surge protection
  • ❄️ Ultra-low power consumption
  • 🔔 Condenser maintenance alarm
  • 🔌 Runs on single phase 6A plug & socket
  • 🌡️ Convertible: -22°C to -18°C (Ice Creams), 2°C to 5°C (Dairy)
  • 🌬️ Flexible heat exhaust system
  • 🔒 Door safety lock
  • 🔥 Designed for high ambient conditions
  • 💡 Bright LED temperature indication
  • 🛞 Heavy-duty industrial levelling casters with lock

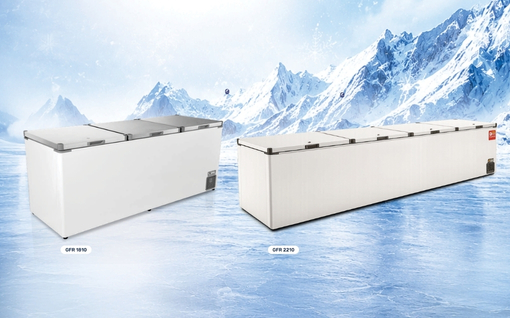

Technical Specifications Horizontal

Description GFR-1810 GR-F2210
Gross Capacity (L) 1629 2105
Net Capacity (L) 1550 2004
Product Dimension WxDxH (mm) 3315*930*960 4206*930*960
Temperature Range (Freezer) -I2℃ to -23℃ -12℃ to -23℃
Power Supply Single Phase 190-254V, AC 50Hz Single Phase 190-254V, AC. 50Hz
Power Consumption unit per Day 10.32Kwh/24Hr 9.96Kwh/24Hr
Refrigerant R- 290 R- 290
Number of Door 3 4
Lock & Key YES YES
Outer and Inner Body Material PPGI PPGI
Defrost Drain YES YES

4 UNITS REPLACE A 10′ × 10′ COLD ROOM
  • 💰 Lower investment
  • ✅ Reliable performance
  • ⏱️ Temp. holdover during power failure (Up to 24 hours)
  • 📦 Space utilization
  • 🔋 Backup power requirement – Requires only 5 kVA generator/inverter
  • 🛡️ Noise, safety & security
  • 🔌 Runs on single phase 6A plug & socket
  • 🛡️ Redundancy & safety
  • 🛠️ Easy maintenance
  • ⚡ Low operating cost
  • ❄️ Wide temperature range (-25°C to +5°C adjustable)

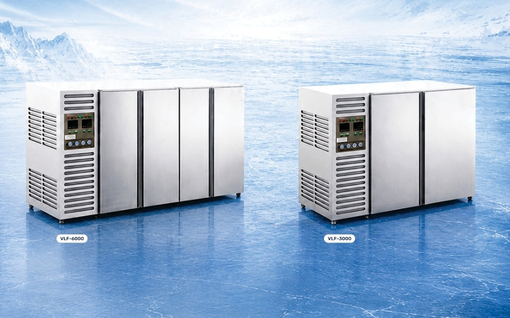

Technical Specifications Standalone Blast Freezer

Model VLF-6000 VLF-3000
Extemal Dimensions (WxDxH)mm 3875(W)x1548(D)x2330(H) 2265(W)x1548(D)x2330(H)
Internal Cabin Volume 6000L 3000L
Number of doors 4 No's(SeIf-cIosing doors ) 2 No's(SeIf-cIosing doors )
Moc - Body & Door SS SS
Number of trays/trolley 30(4 kg per Tray) 30(4 kg per Tray)
Weight 'trolley 125 kg 125 kg
Power Supply 3 Phase 380-415 v,AC. 50Hz 3 Phase 380-415 v,AC. 50Hz
Number of Compressors 1 1
Connected Load 20000 W 10000 W
Machine Mobility Heavy Duty Industrial leveling castors with locking - 8 No's Heavy Duty Industrial leveling castors with locking - 6 No's
Maximum Operating Ambient Temp 43 Deg C 43 Deg C
Cabin Temp Range -10 Deg C to -40 Deg C -10 C to -40 C
Temp Display 4 inch large Bright Red colour LED display 4 inch large Bright Red colour LEO display
Coding Capacity 500kg/batch(upto 125kg trolley/door in 6 hours) 250kg/batch(upto 125kg trolley/door in 6 hours)
Insulation High Density Puf High Density Puf
Insulations Thickness 90mm 90mm
Defrost Type Auto-Defrost /hot gas &electric Auto-Defrost
Refrigerant Gas (Type/Charge) R404a R404a
